| 產品規格 |
| 型號 |
CA-1E1-00M1WN-03 |
| 機型 |
Mid Tower
|
尺寸
( 寬 x 高 x 長 ) |
525 x 230 x 577 mm (20.6 x 9.1 x 22.7 inch) |
| 重量 |
13.7 kg / 30.2 lb |

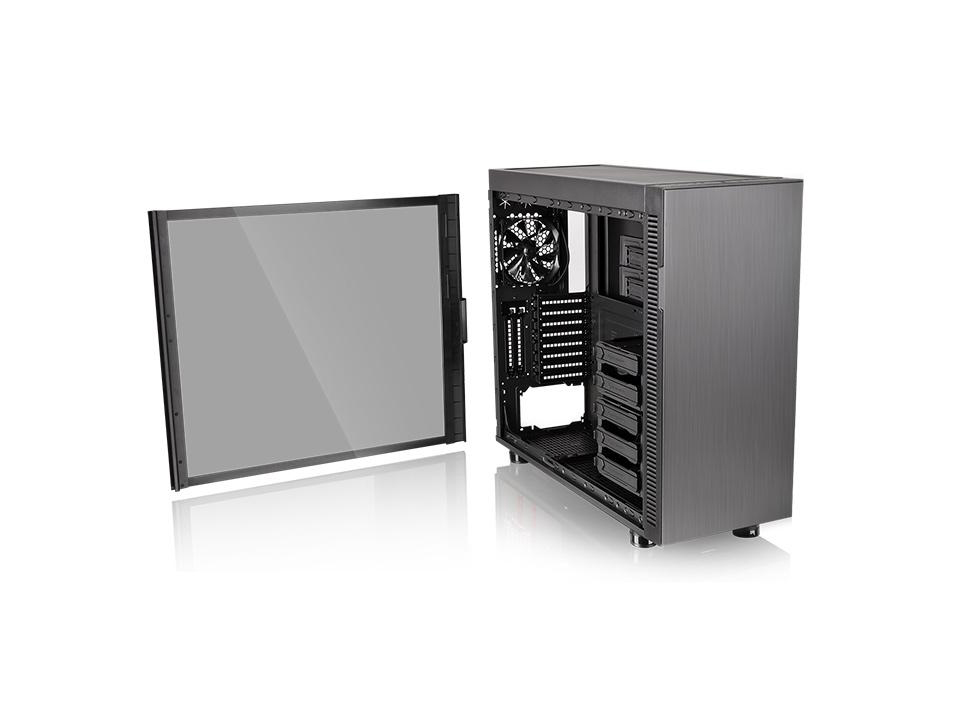

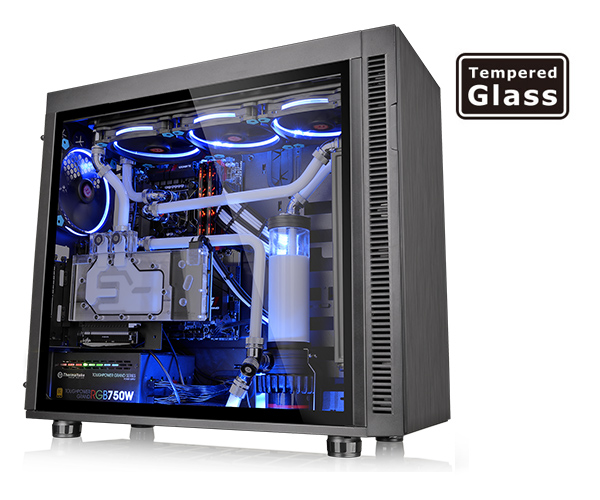

| 側窗 |
Temped Glass |
| 顏色 |
Exterior & Interior : Black |
| 材質 |
SPCC |
| 散熱系統 |
Front (intake) :
200 x 200 x 30 mm fan (600~800rpm,13~15dBA)
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) |

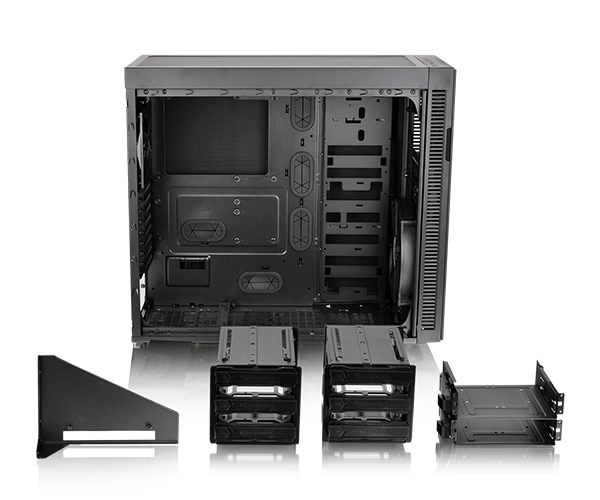

| 儲存裝置 |
-Accessible
-Hidden
2 x 5.25"
6 x 3.5" or 2.5" (HDD Cage)
2 x 2.5" (With Power Cover) |
| PCI 插槽 |
8 |
| 適用主機板 |
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (Extend ATX) |
| I/O 連接埠 |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| 電源供應器 |
Standard PS2 PSU (optional) |

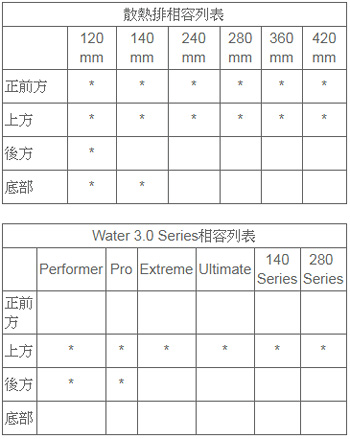

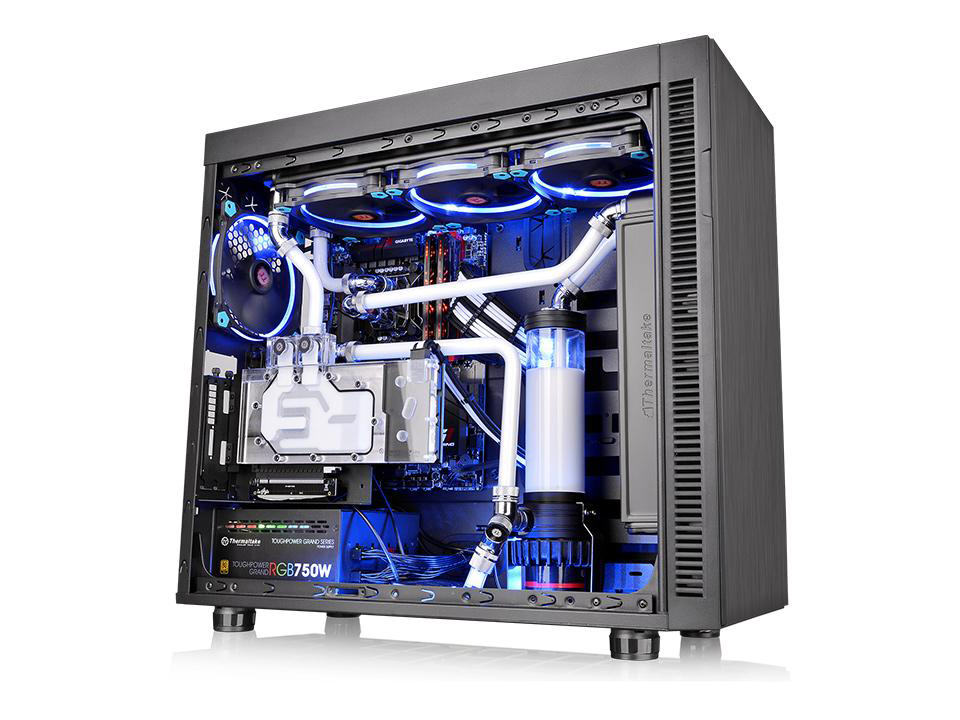

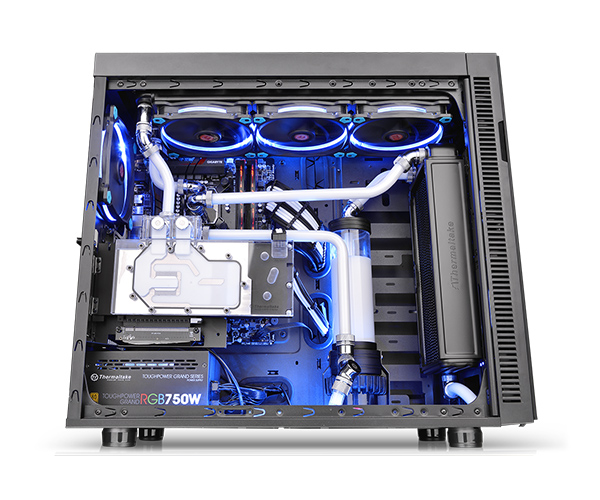

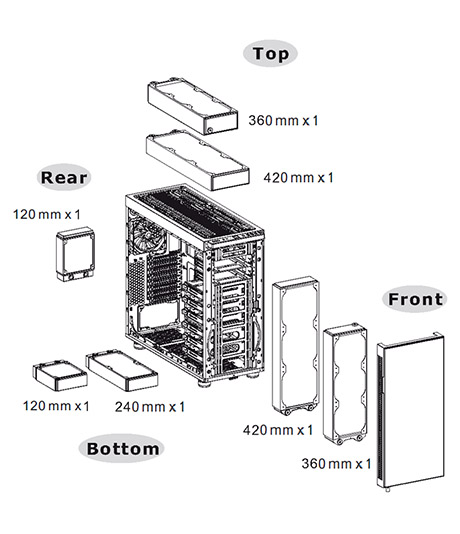

| 水冷排支援 |
Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 240mm |

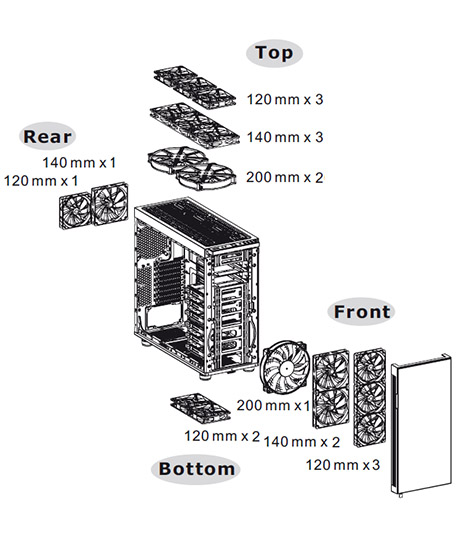

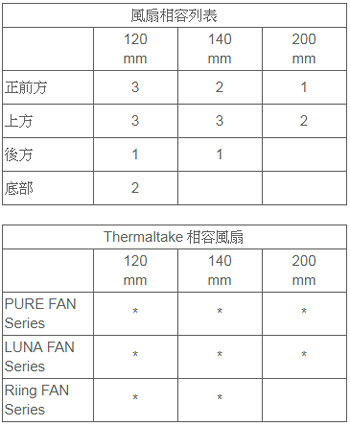

| 風扇支援 |
Front:
3 x 120mm , 2 x 140mm , 1 x 200mm
Top:
3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 120mm |
| 備註 |
CPU cooler height limitation:
185mm
VGA length limitation:
310mm(with HDD rack)
465mm(without HDD rack)
PSU length limitation:
220mm (With Bottom Fan) |
